Modula Sintes1. It’s small. It has it all.

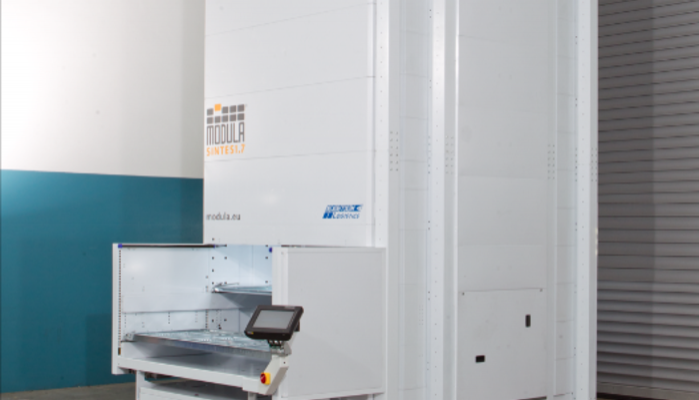

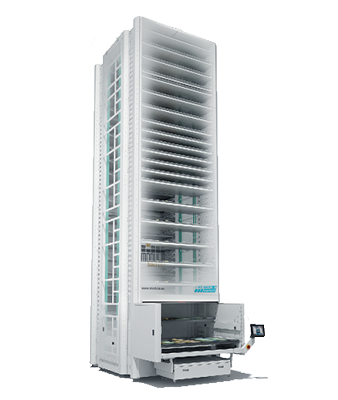

The Modula Sintes1 is an automated vertical lift module (VLM) designed specifically for small to medium sized applications. With its compact size, it is ideal for storing and picking items such as electronic components, pharmaceuticals and tools. It features a modern and sleek appearance, with a coated internal steel structure and pre-coated exterior panels for increased durability and protection. It is manufactured by Modula in the United States on a state of the art production line, ensuring that each feature functions optimally. Recover space in every environment. Save time and increase your operating speed. Reduce operator risk. Make sure your stocked products are safe. Better efficiency with minimum investment. Get to control your inventory with a customized WMS.
Modula Sintes 1.3Modula Sintes 1.7
Modula Sintes 1.3
| Model | Tray Width (in/mm) | Tray Depth (in/mm) | Tray Wall height (in/mm) | Maximum Tray Payload Capacity (lbs/kg) | Unit Footprint internal Bay (width x Depth in/mm) | Unit Footprint External Bay (Width x Depth in/mm) |
| SINTES1.3 | 51.18 | 25.75 | 1.22-2.20 | 441 | 64.96×93.54 | 64.96×122.09 |
| 1,300 | 654 | 31 – 56 | 200 | 1,650 x 2,376 | 1,650 x 3,101 |
Modula Sintes 1.7
| Model | Tray Width (in/mm) | Tray Depth (in/mm) | Tray Wall height (in/mm) | Maximum Tray Payload Capacity (lbs/kg) | Unit Footprint internal Bay (width x Depth in/mm) | Unit Footprint External Bay (Width x Depth in/mm) |
| SINTES1.7 | 66.93 | 25.75 | 1.22-2.20 | 441 | 80.71×93.54 | 80.71×122.09 |
| 1,700 | 654 | 31-56 | 200 | 2,050×2,376 | 2,050×3,101 |
| GENERIC SPECIFICATIONS | ||
| Unit heights | from 8′ – 6″ (2,600 mm) to 23′ – 4″ (7,100 mm) | |
| Unit height increments on | 3.94″ (100 mm) | |
| Tray storage adjustability | 1.0″ (25 mm) | |
| Tray widths | 51.18″ (1,300 mm) & 66.93″ (1,700 mm) | |
| Tray depths | 25.75″ (654 mm) | |
| Net tray payload capacities | 441 lbs (200 kg) | |
| Net unit load capacity | 55,115 lbs (25,000 kg) | |
| Gross unit load capacity | 66,243 lbs (30.000 kg) | |
| Throughput | up to 140 trays / hr. (depending on the unit’s configuration) | |
| Operator interface | rugged 10.4″ color touchscreen operator control console | |
| Type of bays | internal or external bay, single-delivery or dual-delivery | |
| Minimal energy consumption | 2 Hp / 1.5 kW vertical axis motor | |
| Automatic tray weight measurement each time a tray is returned | ||
| Dynamic storage of trays depending on the specific height | ||
| Coated steel internal frame structure | ||
| Vertical axis lifting design driven by 4 steel reinforced toothed belts | ||
| Extractor’s vertical lifting system guided with 4 urethane rollers for each side of the elevator | ||
